Assembly is very simple. Simply place flush up against the front of the oven and insulate and render.

Comes with a 12 month material defects warranty & its 100% Australian made

* Chamber pieces selection 1 piece or 3 piece

This means you can have the chamber manufactured in 1 piece at 400kgs which has an anchor point to lift it onto your base. If you choose the 3 piece chamber it comes in 2 pieces at 135kgs each which can be easily lifted if access to your base to build the oven is a problem.

Download PDF Instruction

Specifications:

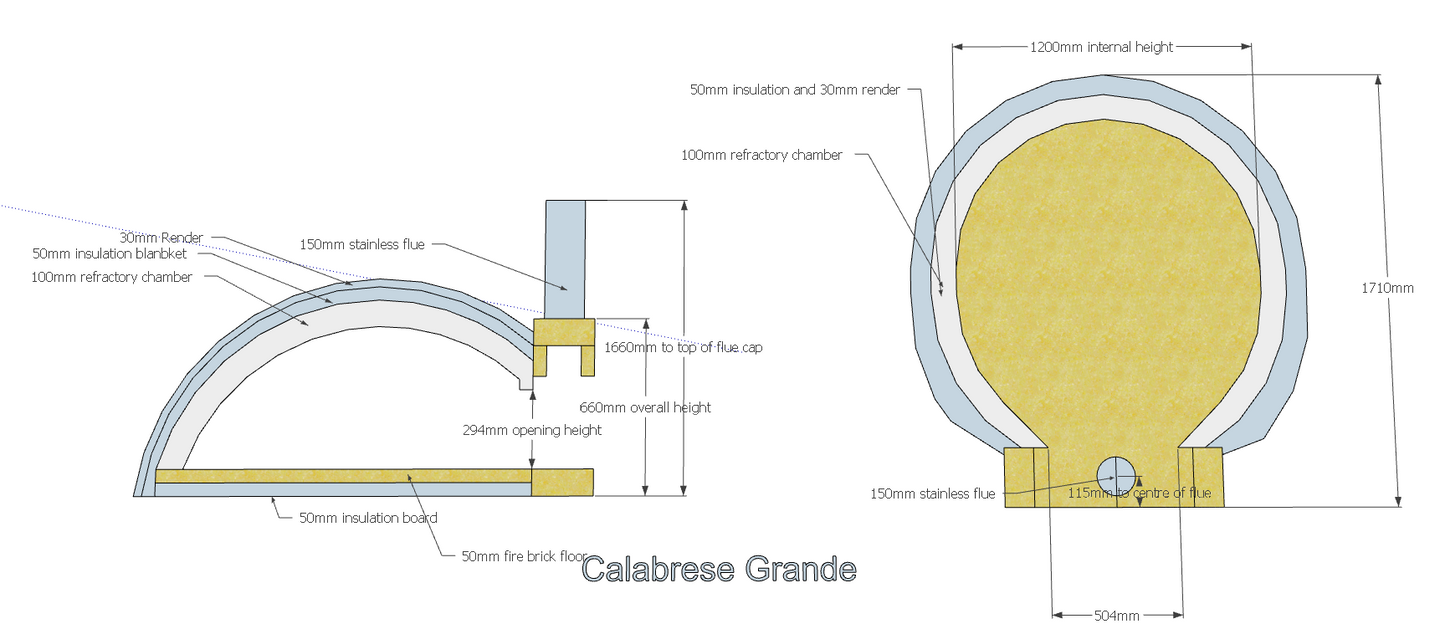

• Internal cooking floor size 1200mm wide x 1530mm Long x 520mm High
• External dimensions: 1700mm wide x 1800mm Long x 725mm High
• Ideal base size : 1700mm wide x 1800mm Long x 950mm High
• Weight: DIY kit – 700 kgs
•  Capacity – 10 x 300mm pizzas at a time
• Heating time – 0 – 400 degrees = 40 mins
•

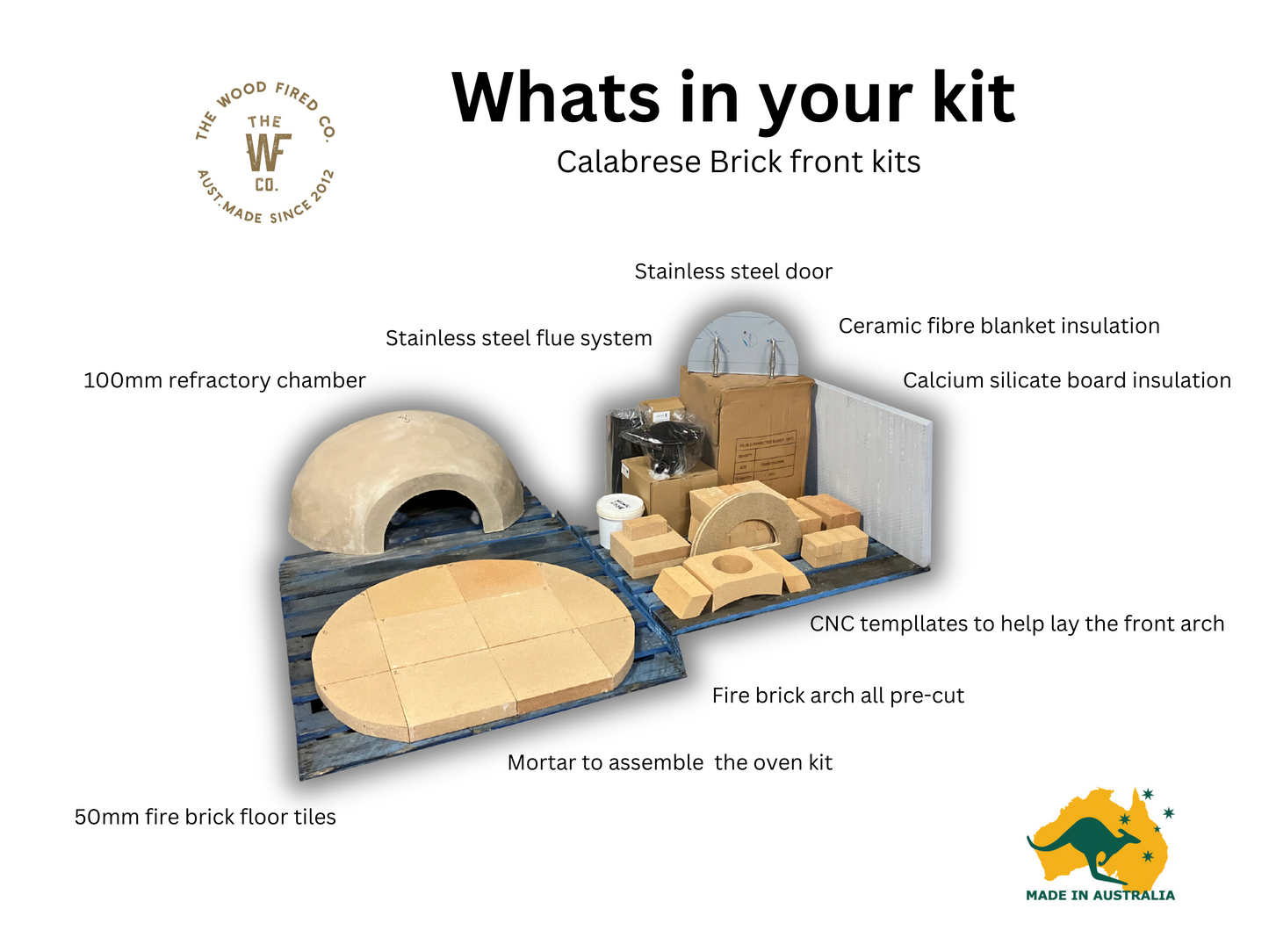

Oven kit consists of:

• 50mm Calcium silicate hard Underfloor insulation
• 50mm PRECUT cooking floor tiles
• PRECASTED refractory Dome – ( 1 piece or 3 pieces )
• Insulation Blanket 50mm – (Ceramic fibre blanket)
• FRONT flue arch 316 stainless steel – Black
• Black granite entry Ledge
• Mortar TUB
• Black steel door with temp probe
• 900 x 150mm Stainless steel flue with anti downdraft rain hat
• Detailed instructions

This kit comes with a 1 YEAR material defects warranty

Please note: The only thing we dont supply is the Wire and Render otherwise the kit is complete to build. The render and chicken wire are available at any hardware store for less than $40 –  Brickies sand & cement mix is fine.
