Calabrese Entertainer Neo kit

Assembly is very simple. Simply place flush up against the front of the oven and insulate and render.

Comes with a 12 month material defects warranty & its 100% Australian made

* Chamber pieces selection 1 piece or 3 piece

This means you can have the chamber manufactured in 1 piece at 240kgs which has an anchor point to lift it onto your base. If you choose the 2 piece chamber it comes in 2 pieces at 100kgs each which can be easily lifted if access to your base to build the oven is a problem.

Download PDF Instruction

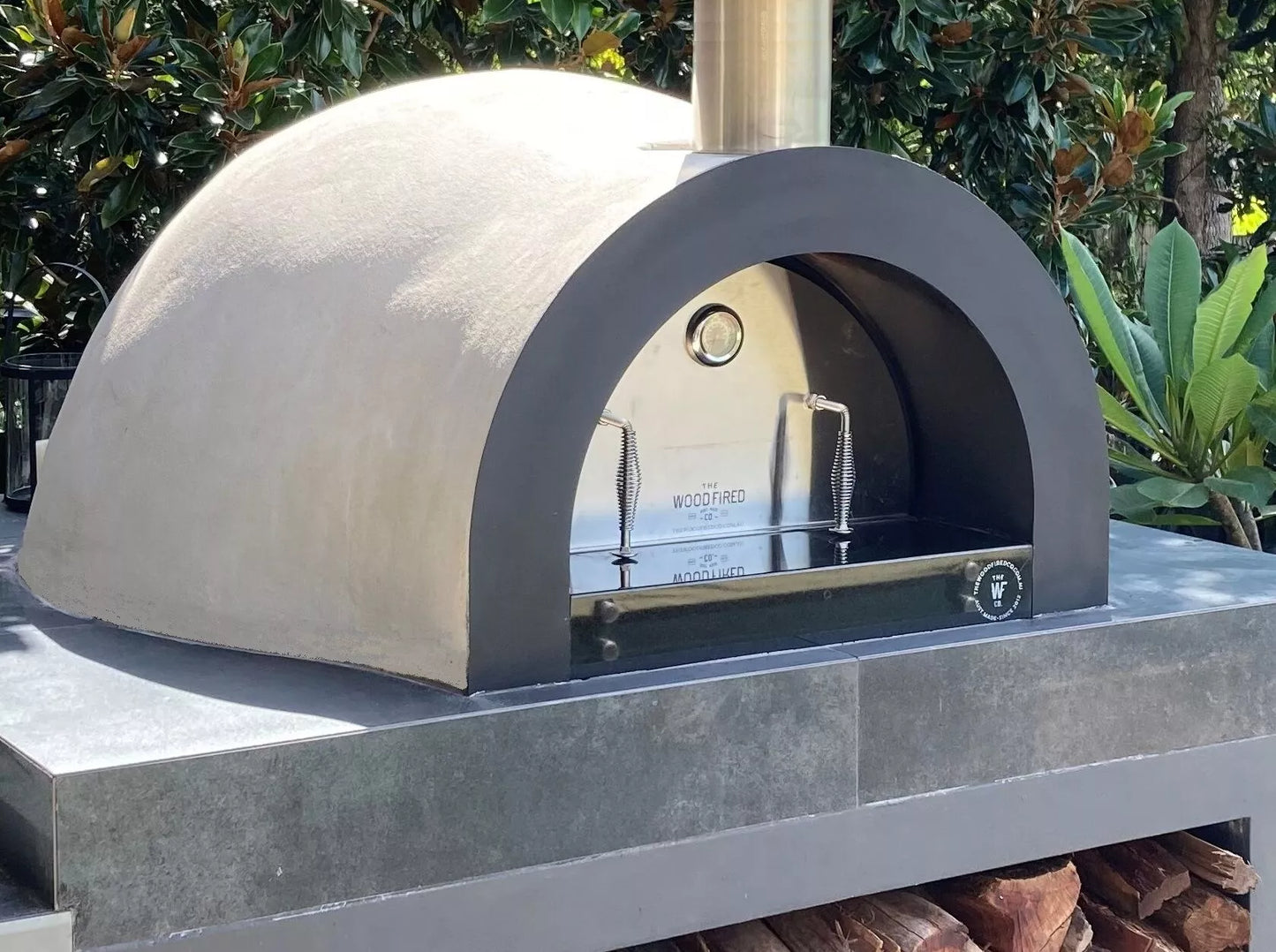

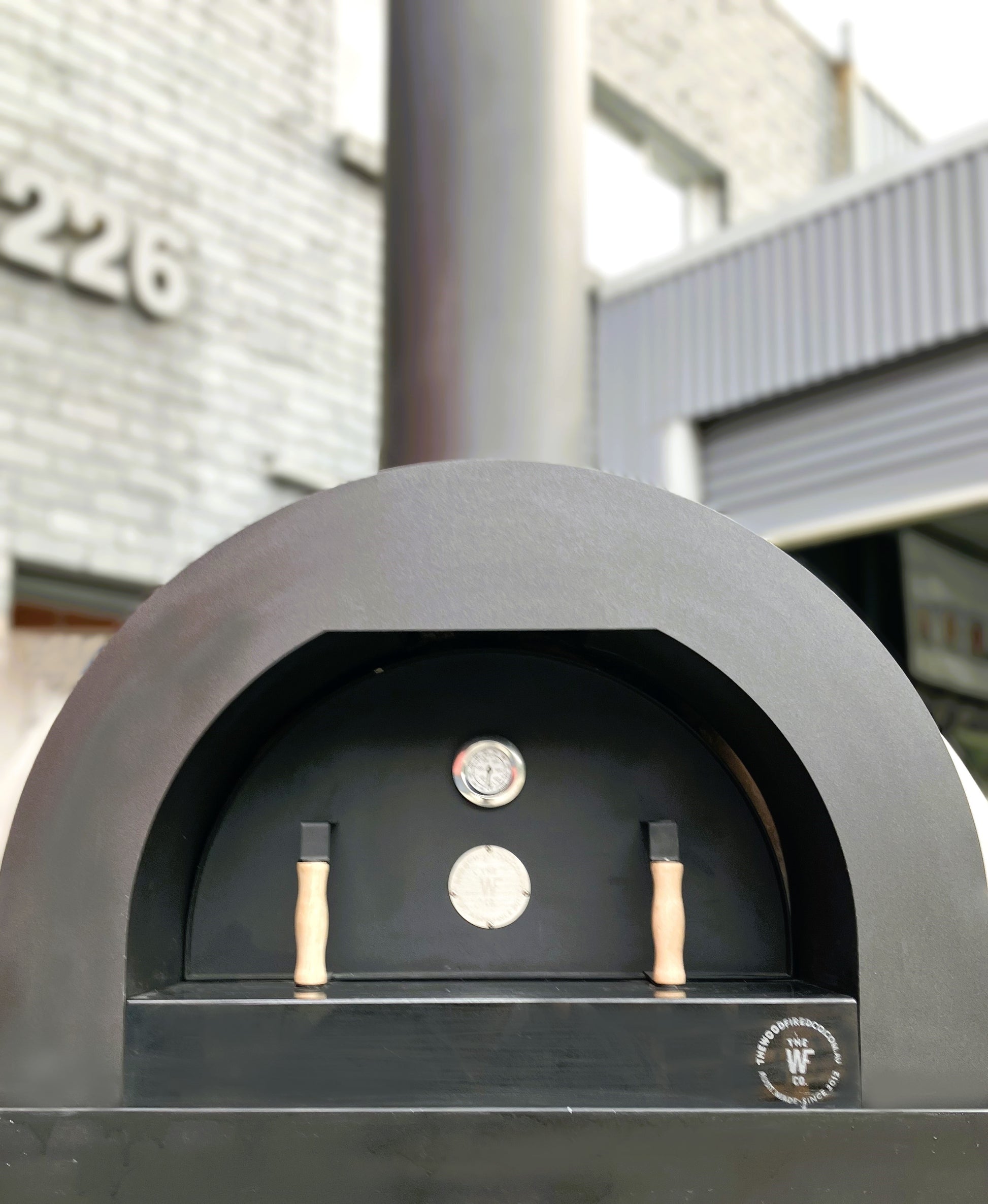

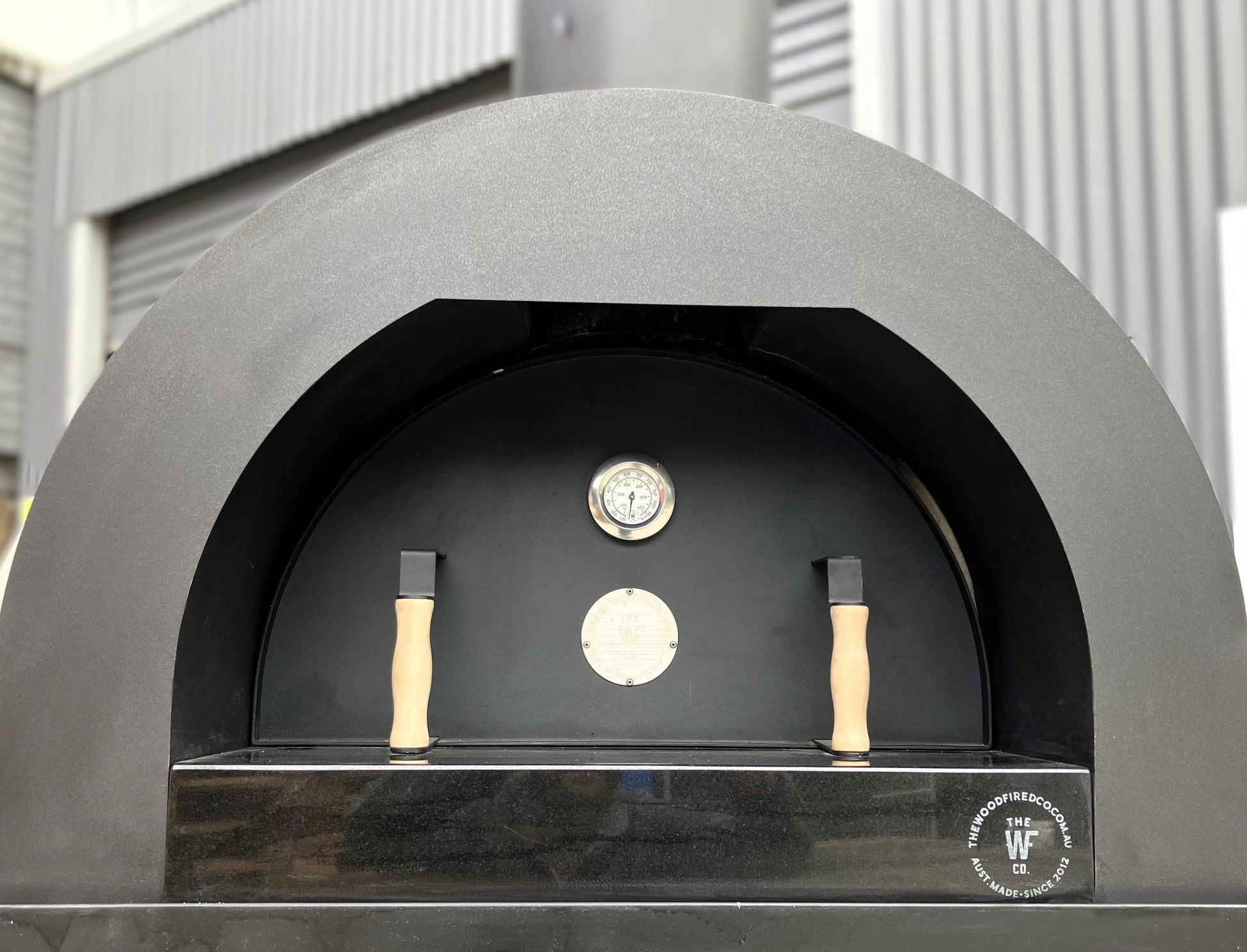

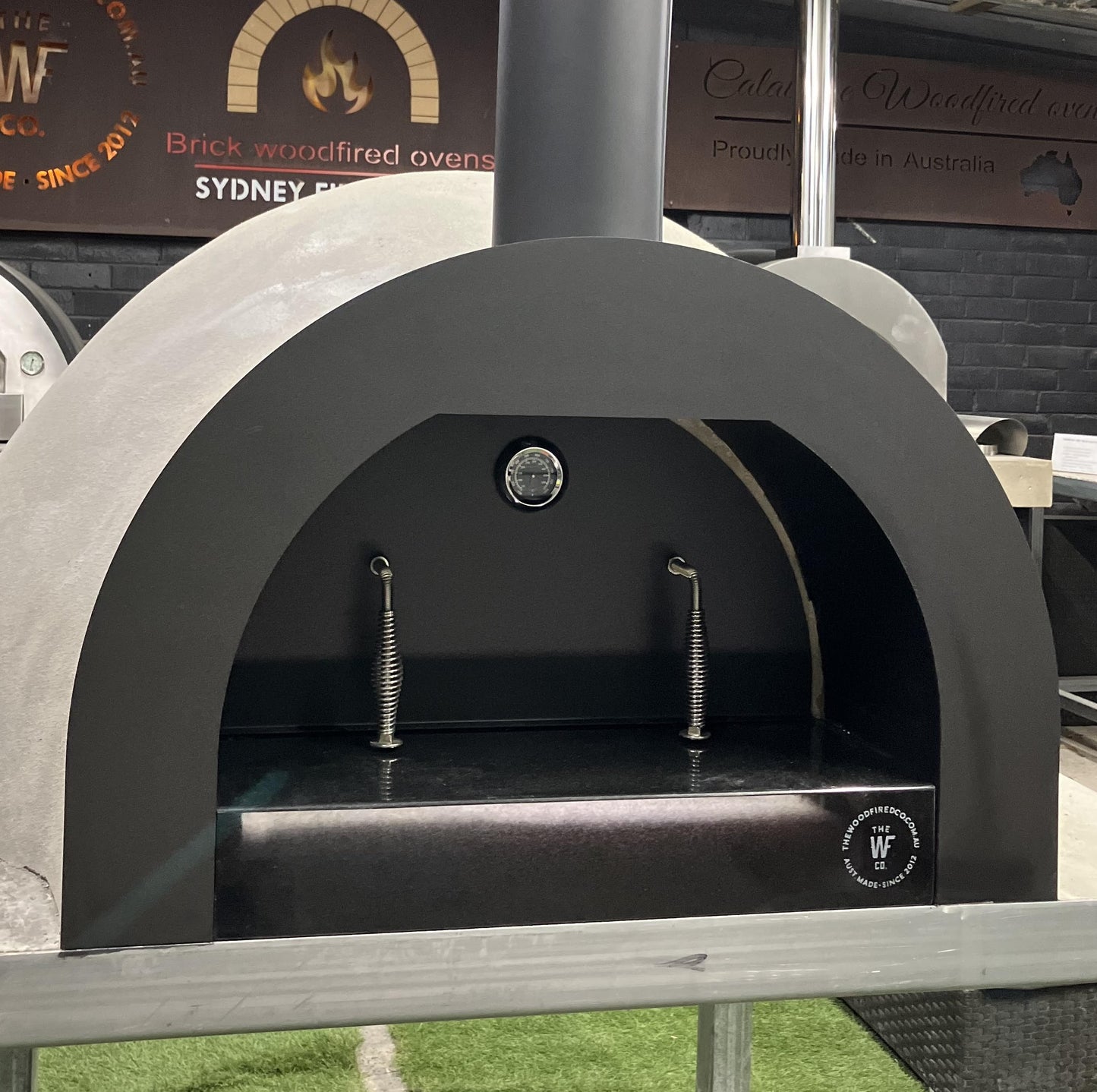

The Neo series of oven are designed to give a modern spin on our woodfired ovens. Featuring a 316 stainless front it will forever look the part.

Still featuring superior heat retention up to 72hrs you will have the best performance aswell as an oven to last the test of time.

       Specifications:

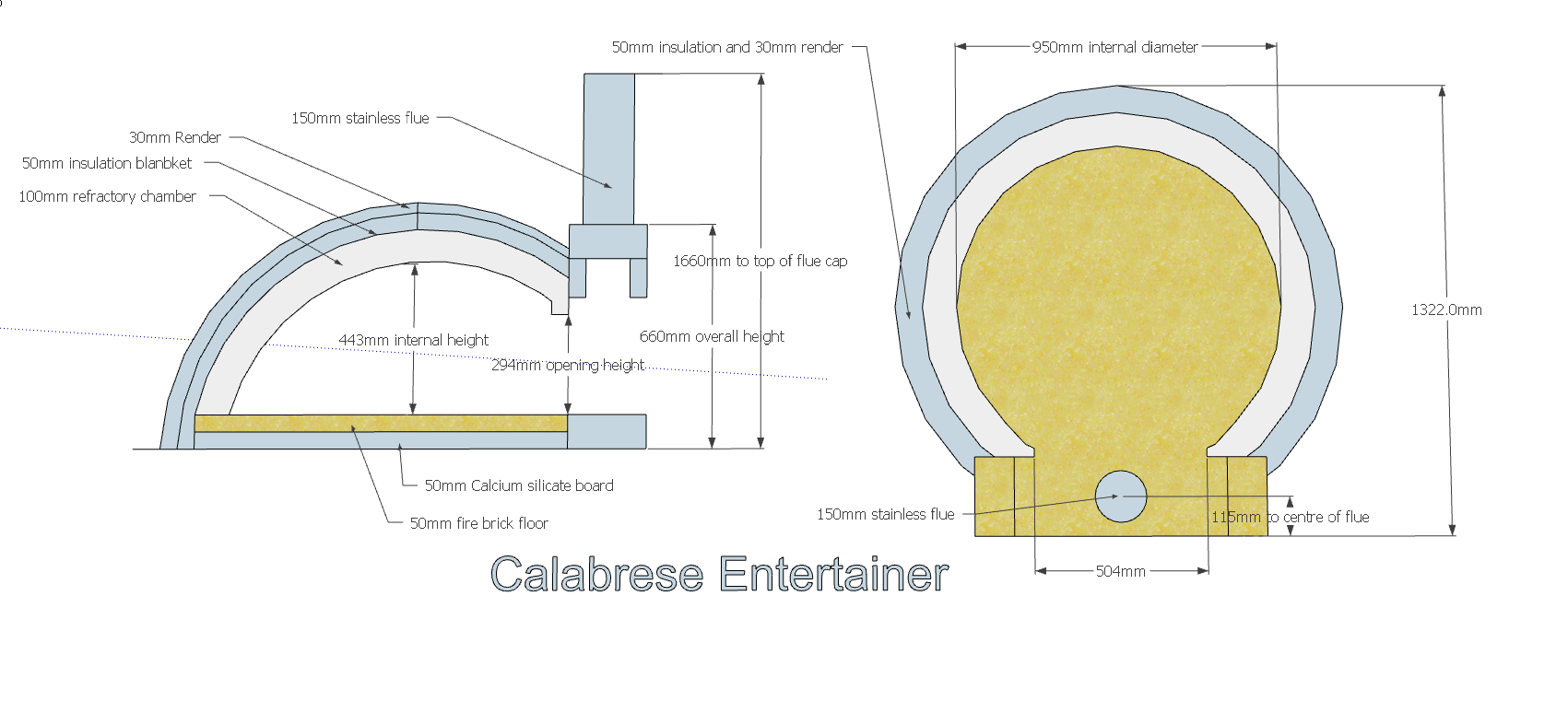

• Internal cooking floor size 950mm wide x 1150mm Long x 420mm
• External dimensions: 1400mm wide x 1400mm Long x 600mm
• Ideal base size : 1500mm wide x 1500mm Long x 950mm High
• Weight: DIY kit – 500kgs
•  Capacity – 5 x 300mm pizzas at a time
• Heating time – 0 – 400 degrees = 30 min

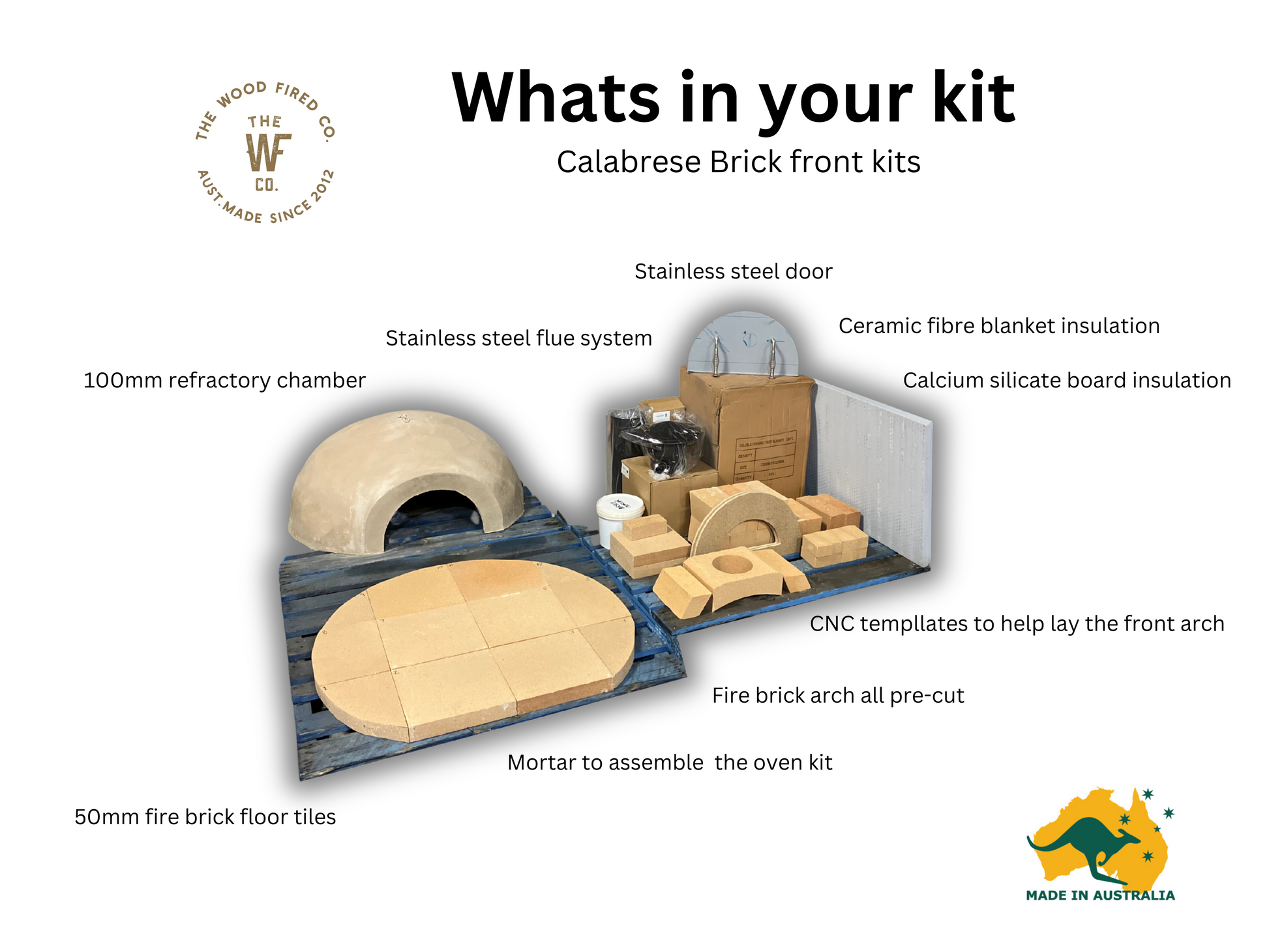

       Oven kit consists of:

• 50mm Calcium silicate hard Underfloor insulation
• 50mm PRECUT cooking floor tiles
• 100mm PRECASTED refractory Dome
• Insulation Blanket 50mm – (Ceramic fibre blanket)
• Stainless steel front
• Mortar TUB
• Black steel door with temp probe
• 450 x 150mm Stainless steel flue with rain hat
• Detailed instructions
• Black granite entry ledge
• AUSTRALIAN MADE

This kit comes with a 1 YEAR material defects warranty

Please note: The only thing we dont supply is the Wire and Render otherwise the kit is complete to build. The render and chicken wire are available at any hardware store for less than $40 – Brickies sand & cement mix is fine.
