A 5 pizza capacity – 950mm x 1150mm internal size, large enough for a large size and pizza all year round. With our unbeatable 72 hour heat retention you will be harnessing the heat from this oven for days !

Comes with a 12 month material defects warranty & its 100% Australian made

* Chamber pieces selection 1 piece or 3 piece

This means you can have the chamber manufactured in 1 piece at 240kgs which has an anchor point to lift it onto your base. If you choose the 3 piece chamber it comes in 2 pieces at 80kgs each which can be easily lifted if access to your base to build the oven is a problem.

Download PDF Instruction

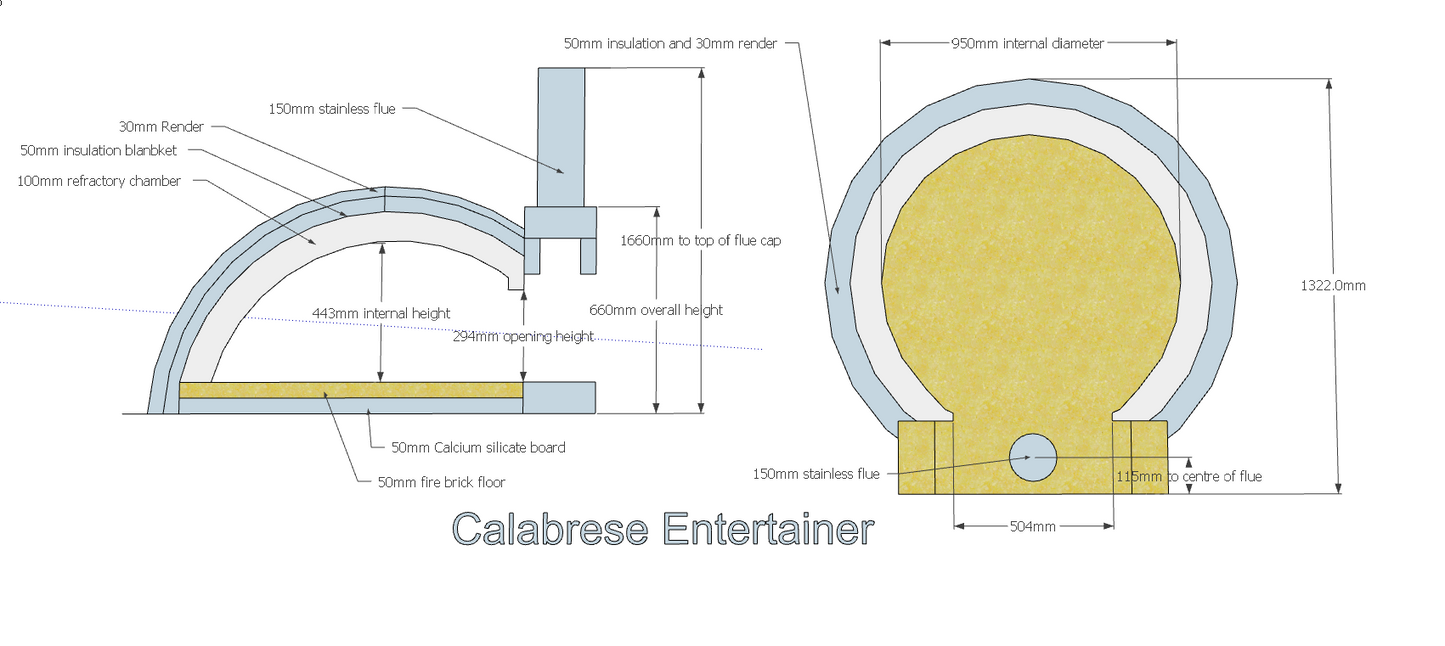

Specifications:

• Internal cooking floor size 950mm wide x 1150mm Long x 420mm
• External dimensions: 1400mm wide x 1400mm Long x 600mm
• Ideal base size : 1500mm wide x 1500mm Long x 950mm High
• Weight: DIY kit – 500kgs
•  Capacity – 5 x 300mm pizzas at a time
• Heating time – 0 – 400 degrees = 30 mins

Oven kit consists of:

• 50mm Calcium silicate hard Underfloor insulation
• 50mm PRECUT cooking floor tiles
• 100mm PRECASTED refractory Dome
• Insulation Blanket 50mm – (Ceramic fibre blanket)
• FRONT flue arch firebricks PRECUT
• CNC precut front arch template
• Mortar TUB

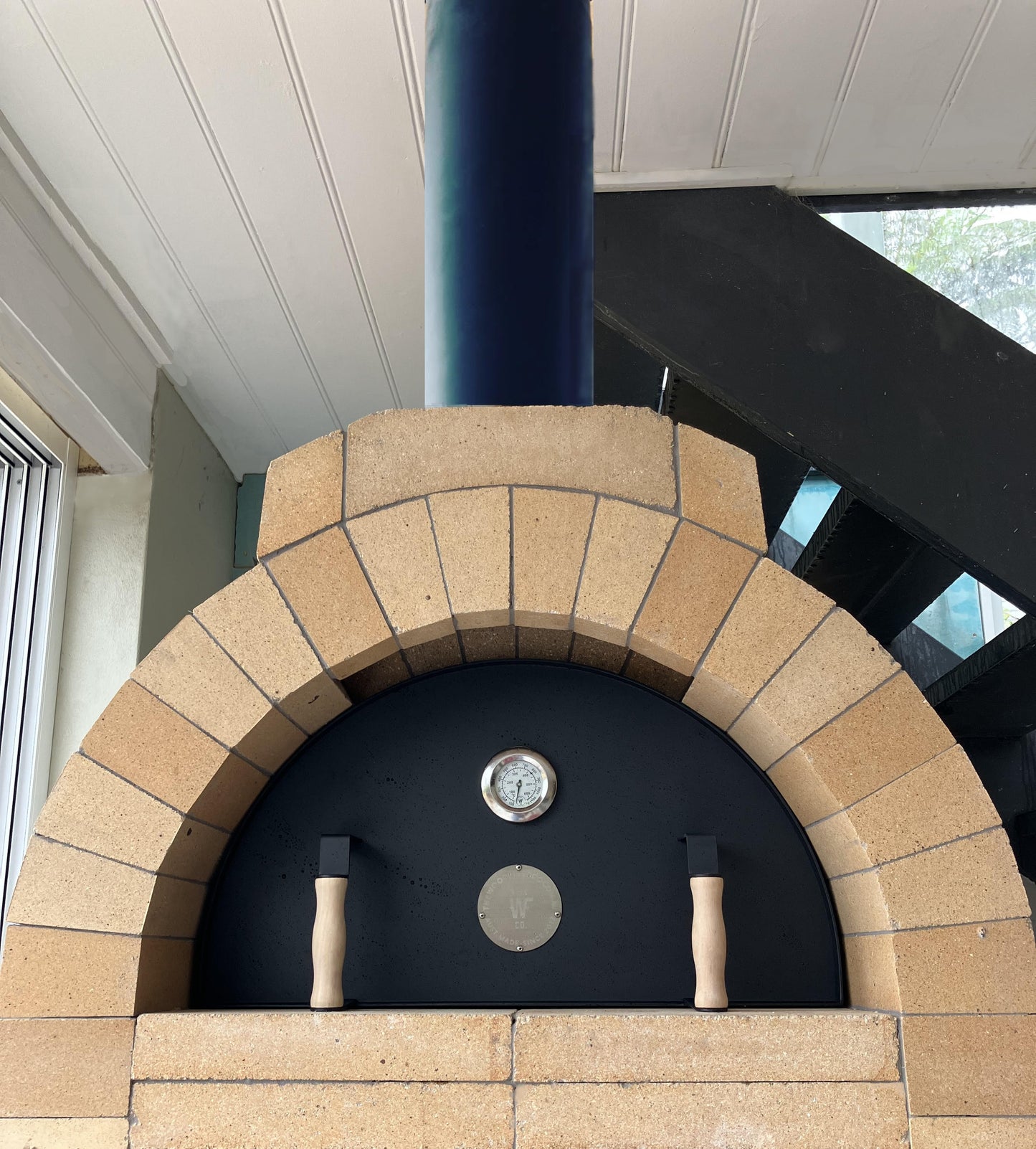

• Stainless steel door with temp probe - ( double insulated door is extra )
• 450 x 150mm Stainless steel flue with rain hat
• Detailed instructions

This kit comes with a 1 YEAR material defects warranty

Please note: The only thing we dont supply is the Wire and Render otherwise the kit is complete to build. The render and chicken wire are available at any hardware store for less than $40 – Brickies sand & cement mix is fine.
